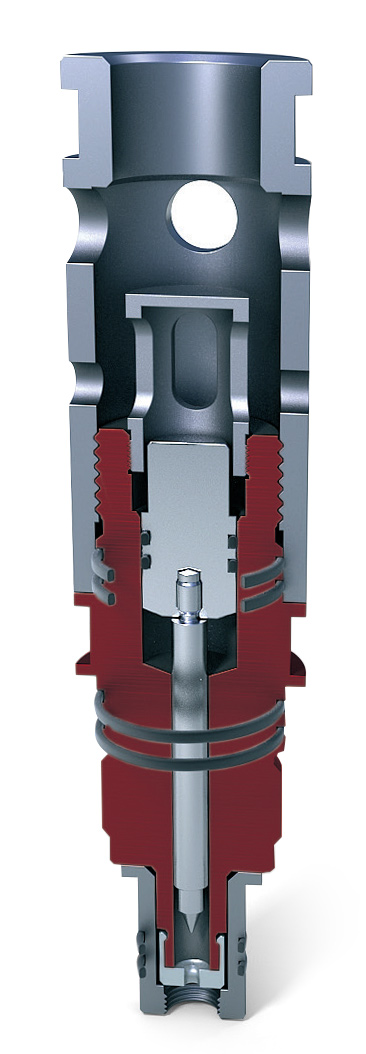

ORION-06 Hydraulic Firing Head for Setting Tool

ORION-06 Firing Head is used to activate tubing conveyed setting tool of IP ORION type. It is activated by applying tubing pressure. Circulating ports of Firing Head housing allow wellbore fluid to safely circulate into the tubing through tubing space. Using different numbers of pins Firing Head can be set to activate at predetermined pressure from 10 to 40 MPa.



Download catalog
Specification Item list

Specification

Feature
Value
Mark
GS-ORION-06-82
Thread size and type
(Firing Head with ORION Setting Tool)
(Firing Head with expansion joint)

Tr 65x4
М 52х3
Applicability
IP-1 ORION, IP-2 ORION (PSH 82 ORION, PSH 102 ORION, PSH 110 ORION, PSH 118 ORION, PSH 136 ORION, PSH 145 ORION)
Max hydrostatic initiation pressure, MPa, max 10 pins
40
Min hydrostatic initiation pressure, MPa, min 2 pins
10
Max allowed location time of FH in the well*
at 150°C during 144 hours
Perforator operation, salvo
5
Weight, kg
9,25
Max OD, mm
82
Overall length, mm
355

Notes:
1) Time is also limited by max allowed temperature of O-ring temperature resistance;
2) Following limit deviations are allowed:
- Overall dimensions, ± 2%;
- Weight, ± 3%.

Item list

Item name
Mark
Quantity
Housing
VGS - GIG -001
1
Botton sub
VGS - GIG -002
1
Plug
VGS - GIG -004
1
Piston
VGS - GIG -005
1
Cup
VGS - GIG -006
1
Firing pin
VGS - GIG -007
1
Plug
VGS - GIG -008
1
Nut
VGS - GIG -009
1
Plug
VGS - GIG -010
1
Pin
VGS - GIG -007
10
O-ring GOST 18829-73/9833-73
027-033-36-2-6
2
O-ring GOST 18829-73/9833-73
034-040-36-2-6
2
O-ring GOST 18829-73/9833-73
060-066-36-2-6
4
Igniter
1
