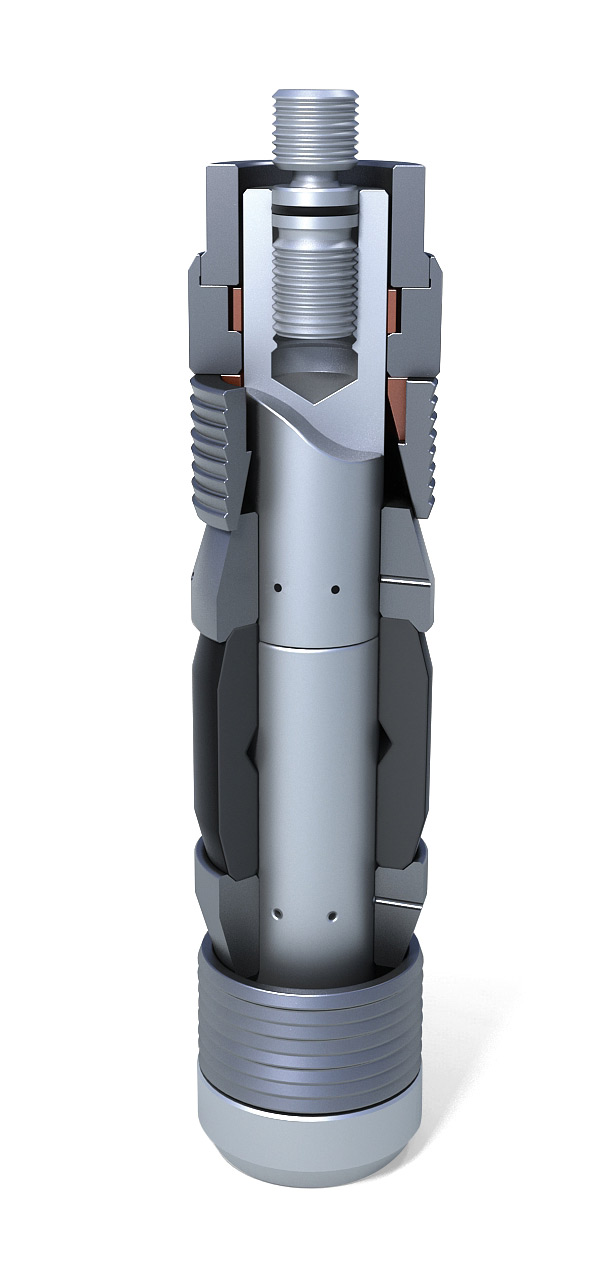

Slips Packer PSh ORION

Slips packer is used to set a drillable isolation bridge in cased holes. It is used in the fluid filled wells (water, washing solution, and oil) at hydrostatic pressure 150 МPа and up to 150°С.

Isolation bridge made from Slips packer can bear a short time load of 30-40 ton (during 24 hours) and pressure drop of 65МPа (650kgf/cm2) without additional cement grouting.

It is run on a special setting tool.



Download catalog

Specification

Feature
PSh 82
PSh 92
PSh 102
PSh 110
Packer OD, mm
82
92
102
110
Packer length, mm
386
410
400
530
Packer weight, kg
6,6
9,34
11
18
Casing ID, mm
- min
88
100
109
117
- max
98
110
122
124
Temperature of downhole conditions, during 3 hours °С, no more than
150
150
150
150
Downhole conditions
oil, formation fluid, water
Feature
PSh 118
PSh 136
PSh 145
Packer OD, mm
118
136
145
Packer length, mm
530
545
545
Packer weight, kg
19
25,4
29,5
Casing ID, mm
- min
125
144
156
- max
133
152
164
Temperature of downhole conditions, during 3 hours °С, no more than
150
150
150
Downhole conditions
oil, formation fluid, water

Note:
Followinf limit deviations are allowed:
- overall dimensions ± 2%;
- weight± 3%.

Item list

Item name
Mark
Quantity
Rod
1
Friction block (drag shoe)
2
Cone
2
Packer sealing cup
1
Holder
1
Stop ring
1
Lock nut
1
Cap
1
Screw rod
1
Pin 5x32
13
Set screw
GOST R ISO 4766-М6x16-14H
1
O-ring GOST 18829-73
034-040-36-2-6
1
