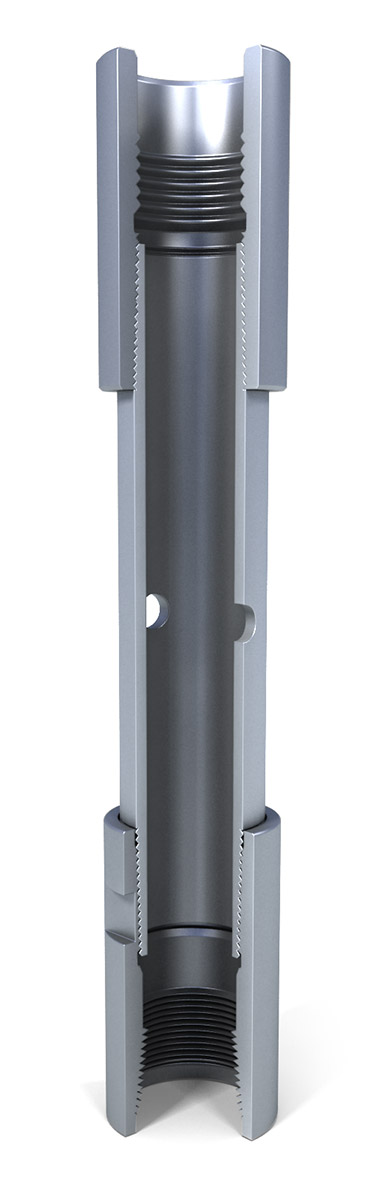

Running sub

Running sub is used for RIH/POOH operations of tubing conveyed perforators.



Download catalog
Specification

Specification

Mark
Weight, kg
Overall dimensions, mm
Sleeve mark
Sleeve Tread type
Running sub VGS63-70.000
6,9
Ø73×680
VGS63-70.003
VGS63-70.001
Tr56×4
Tr60,3×4,23
Running sub VGS63-70.000-02
6,9
Ø73×670
VGS63-70.003
VGS63-70.001-02
Tr56×4
Tr60×4-LH
Running sub VGS73-70.000-01
9,6
Ø89×655
VGS73-70.003-01
VGS89-70.001
Tr65×4
Tr70×4,23
Running sub VGS73-70.000-02
9,6
Ø89×655
VGS73-70.003-01
VGS89-70.001-02
Tr65×4
Tr60×4-LH
Running sub VGS89-70.000-01
9,1
Ø89×655
VGS89-70.001
VGS89-70.003-01
Tr70×4,23
Tr76×4
Running sub VGS89-70.000-02
9,1
Ø89×655
VGS89-70.003-01
VGS89-70.001-02
Tr76×4
Tr60×4-LH
Running sub VGS89-70.000-04
11,6
Ø89×655
VGS89-70.003-02
VGS89-70.001-02
З-66
Tr60×4-LH
Running sub VGS102-70.000
10,1
Ø102×655
VGS102-70.003
VGS89-70.001
Tr90×4
Tr70×4,23
Running sub VGS102-70.000-02
10,1
Ø102×655
VGS102-70.003
VGS89-70.001-02
Tr90×4
Tr60×4-LH
Running sub VGS114-70.000
12,1
Ø114×655
VGS89-70.001
VGS114-70.003
Tr70×4,23
Tr100×4
Running sub VGS114-70.000-02
11,4
Ø114×668
VGS89-70.001-02
VGS114-70.003
Tr60×4-LH
Tr100×4
