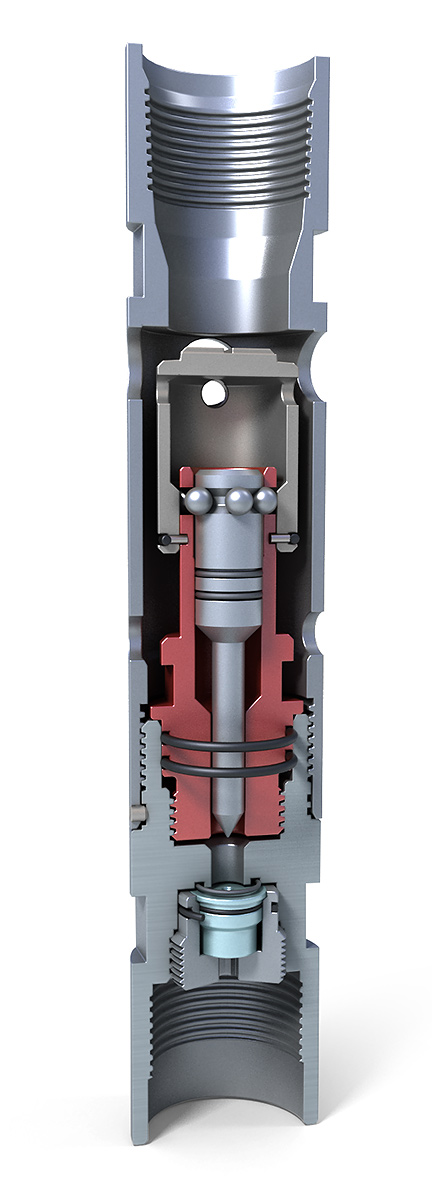

ORION-02 Hydromechanical Firing Head

ORION-02 Hydromechanical Firing Head is used for initiating tubing conveyed perforating systems. The firing head allows the gun system to be detonated by releasing a drop bar into the tubing or pumping rubber ball.

NOTES: Standard Drop bar and Rubber Ball are allowed to be used to initiate the Hydromechanical FH in the wells up to 40° deviation.
Deviations from 40° to 60° require a roller assisted bar or a rubber ball.
Deviations from 60° to 180° require only rubber ball.

DESIGN FEATURES AND APPLICATION:

  • Maintains pressure integrity before and after firing;
  • Can be used during perforation at drawdown (packer and packer-less application);
  • Can be used in deviated or horizontal wells with 180° deviation.


Download catalog

Specification

Feature
Value
Mark
GS ORION-02-63
GS ORION-02-73
GS ORION-02-89
Thread size and type
Tubing В-48
Tubing 60
Tubing 73
Gun connection
Top sub (Tr52×4-LH)
Top sub (Tr60×4-LH)
Top sub (Tr60×4-LH)
Applicability
PK63KL ORION
PK73KL ORION
PK89KL ORION,
PK102KL ORION
Max OD, mm
63
73
89
Max hydraulic pressure, МPа
110
110
110
Min allowed hydrostatic pressure providing operation, МPа
2
2
2
Max hydraulic pressure, no operation, МPа
0,5
0,5
0,5
Max temperature, °С
204
204
204
Perforator operation, salvo
5
5
5
Weight, kg
4,7
7,3
11,9
Overall length, mm
340
395
395

Item list

Item name
GS ORION-02-63
GS ORION-02-73
GS ORION-02-89
Bottom sub
VGS - BSG -001-02
VGS - BSG -001
VGS - BSG -001-01
Housing
VGS - BSG -002-02
VGS - BSG -002
VGS - BSG -002-01
Firing pin housing
VGS - BSG -003-02
VGS - BSG -003
VGS - BSG -003
Firing pin
VGS - BSG -004-02
VGS - BSG -004
VGS - BSG -004
Cup
VGS - BSG -005-02
VGS - BSG -005
VGS - BSG -005
Pin
VGS - BSG -006
VGS - BSG -006
VGS - BSG -006
Plug
VGS - GS -003
VGS - GS -003
VGS - GS -003
O-ring 034-038-25
-
VGS - GS -005
VGS - GS -005
O-ring 021-025-25
-
VGS - GS -007
VGS - GS -007
O-ring 034-040-36
-
VGS - BSG -008
VGS - BSG -008
O-ring GOST 18829-73/9833-73
017-021-25
-
-
O-ring GOST 18829-73/9833-73
050-056-36
060-066-36
-
Ball 8-40
GOST 3722-81
GOST 3722-81
GOST 3722-81
Initiator
Percussion Initiator DYNAWELL HNS
Blasting cap Pacific Scientific-CP DET-3050-134A
Key 7812 - 0376 Х9
GOST 11737-93
GOST 11737-93
GOST 11737-93
Redress kit
RK GS ORION-02-63
RK GS ORION-02
RK GS ORION-02-89
