Accessory for RIH/POOH operations of wireline conveyed perforators

Accessory for RIH/POOH operations of wireline conveyed perforators is used on the wellhead. The accessory averts a risk for damage of wireline. When using the accessory perforator carrier can be placed in a different position to the cable head.

The accessory is used to minimize manual operations during moving the perforating systems or perforating assemblies on the wellhead.



Download catalog
Specification photos

Specification

Mark
Weight, kg
Overall dimensions, mm
Applicability

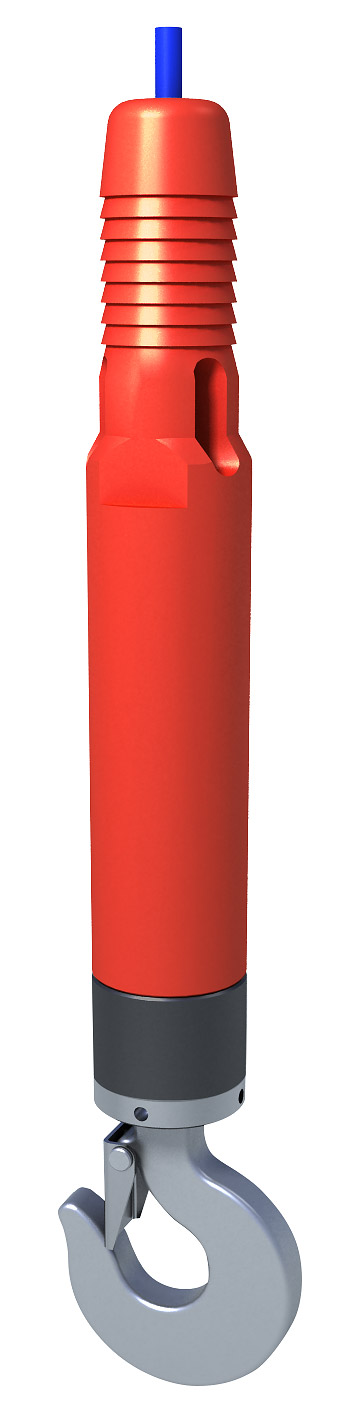

Hook assembly VGS-04.000
3
235×105
Cable head KG60-3
Holder VGS-04.000-01
2,8
220×110
For connection with perforating head (М48x3 thread type)
VGS63-01.002
VGS73-01.002
VGS 89-01.002
VGS 102-01.002
VGS 114-01.002
Holder VGS-04.000-02
2,3
200×110
For connection with cylindrical sub (Tr65x4 trapezoidal thread type)
VGS73-01.004
Holder VGS-04.000-03
2,8
200×110
For connection with cylindrical sub (Tr76x4 trapezoidal thread type)
VGS89-01.004
Holder VGS-04.000-04
2,5
215×110
For connection with conical sleeve (З-66 tool-joint thread) VGS73-80.000
VGS 89-80.000
VGS 102-80.000
VGS 114-80.000
Holder VGS-04.000-05
3,3
200×110
For connection with cylindrical sub (Tr90x4 trapezoidal thread type)
VGS102-01.004
Holder VGS-04.000-06
3,8
200×110
For connection with cylindrical sub (Tr100x4 trapezoidal thread type)
VGS114-01.004
Holder VGS-04.000-07
For connection with top sub (Tr70x4-LH trapezoidal thread type)
Holder VGS-04.000-08
For connection with cylindrical sub (Tr44x4 trapezoidal thread type)
VGS50-01.004
Holder VGS-04.000-011
For connection with top sub (Tr56x4 LH trapezoidal thread type)
VGS63-01.004
